RS Series Foundry Manipulators
RS Series
Heavy-duty manipulators for foundry handling and workpiece positioning.
RS Series
RS Series
The RS Series is a heavy-duty articulated manipulator designed for handling and process operations in demanding foundry and forging environments involving heat, dust and noise. With payload capacities from 500 to 2000 kg, the series can be configured for hot workpiece handling, gate and riser removal, grinding and coating operations. Adjustable clamping force, continuous gripper rotation and heavy-duty articulated joints provide flexible handling and positioning for different workpieces.

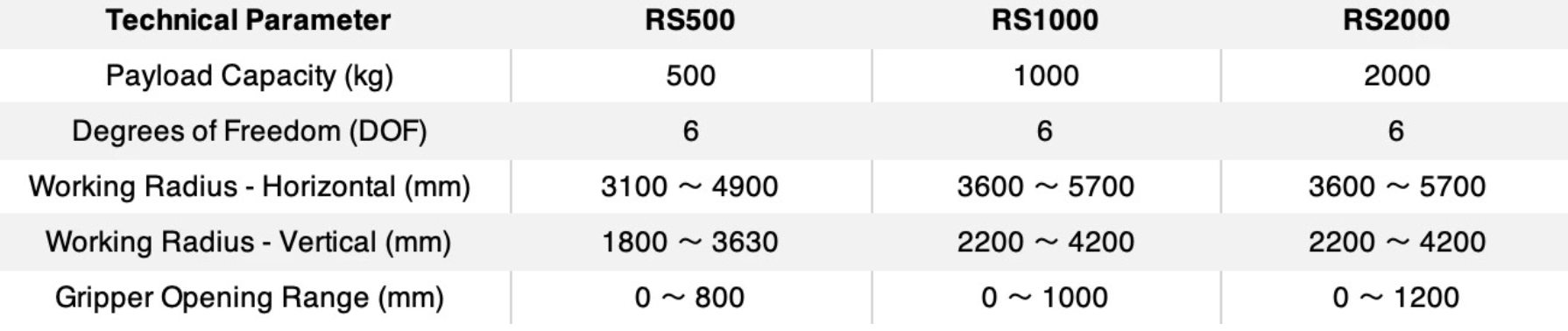

Technical Data
Typical Applications
Hot Workpiece Handling
Handling and positioning of hot castings and workpieces.
Gate & Riser Removal
Handling operations combined with an optional impact hammer configuration for gate and riser removal.
Grinding & Finishing
Suitable for flash, burr and surface grinding operations.
Coating Operations
Applicable to spraying and coating operations in demanding foundry environments.
Selecting the Right RS Model
RS model selection depends on workpiece weight and dimensions, required working radius, gripper opening, handling operation and working conditions. Share your application information and we will evaluate the suitable manipulator and gripper configuration.
Tell Us Your Handling Requirement
Send us your workpiece weight, dimensions, handling operation and working conditions. We will evaluate the suitable RS model, working range and gripper configuration.
